2 LAB : Hello Triangle

Introducton to OpenGL and other modules

☁️ GLFW Input Handling

glfwPollEvents()

• processes events that have already been recieved.
• Calls a user-registered callback function for each type of events

⇒ event들이 들어와서 queue에 쌓여있다가 차례로 꺼내서 찾아줌

☁️ Documentation for glfw

from glfw.GLFW import *

→ You can use the same function and constant names as in the GLFW C API

• site which provides GLFW C API documentation

Documentation

• note that functions like glfwGetMonitors() return a list instead of a pointer and an object count.

☁️ PYGLM

OpenGL Mathematics (GLM) is a C++ mathematics library based on the OpenGL Shading Language (GLSL) specification

PyGLM is a python extension based on GLM

• PyGLM documentation

wiki

Home

Function reference

PyGLM/README.md at master · Zuzu-Typ/PyGLM

Shaders

☁️ GLSL - OpenGL Shading Language

• OpenGL shaders are written in GLSL

• GLSL is a C-type language, so it covers most of the features you would expect with C language

• We use GLSL 3.30 core profile by specifying the following directive in the begining of the shader code

#version 330 core

☁️ GLSL Data Type

• Scalar

float, int, bool, ...

• Vector

vec2, vec3,vec4  //float vector
ivec2, ivec3, ivec4 //int vector
bvec2, bvec3, bvec4 //bool vector

• Matrix

mat2, mat3, mat4 //2x2, 3x3, 4x4 float matrix

☁️ GLSL Component Access

Components of vectors are accessed by array indexing with the []-operator (indexing starts with 0) or with the .-operator and the element names x, y, z, w or r, g, b, a or s, t, p, q

vec4 v = vec4(1.1, 2.2, 3.3, 4.4);
float a = v[3]; // = 4.4
float b = v.w; // = 4.4
float c = v.a; // = 4.4
float d = v.q; // = 4.4

It is also possible to construct new vectors by extending the .-notation(”swizzling”)

vec4 v = vec4(1.1, 2.2, 3.3, 4.4);
vec3 a = v.xyz; // = vec3(1.1, 2.2, 3.3)
vec3 b = v.bgr; // = vec3(3.3, 2.2, 1.1)
vec2 c = v.tt; // = vec2(2.2, 2.2)

Matrices are considered to consist of column vectors, which are accessed by array indexing with the []-operator. Elements of the resulting (column) vector can be accessed as discussed above.

mat3 m = mat3(
	1.1, 2.1, 3.1, //first column
	1.2, 2.2, 3.2, //second column
	1.3, 2.3, 3.3, //third column
);
vec3 column3 = m[2]; //vec3(1.3, 2.3, 3.3)
float m20 = m[2][0]; // = 1.3
float m21 = m[2].y; // = 2.3

*matrix[column][row]

GLSL Programming/Vector and Matrix Operations - Wikibooks, open books for an open world

Draw a white Triangle

Preparation1 : Create vertex data (in main memory)

• Vertex Shaders require vertex input data.

import glm
# ...

vertices = glm.array(glm.float32,
				-1.0, -1.0, 0.0, // vertex 0
				 1.0, -1.0, 0.0, // vertex 1
				 0.0,  1.0, 0.0 // vertex 2
)

→ specifies 3 vertices with their x, y, z coordinates.

→ All vertices are in xy plane (z=0).

→ Uses glm, but you can use numpy if you want.

Preparation2 : Create and activate VAO

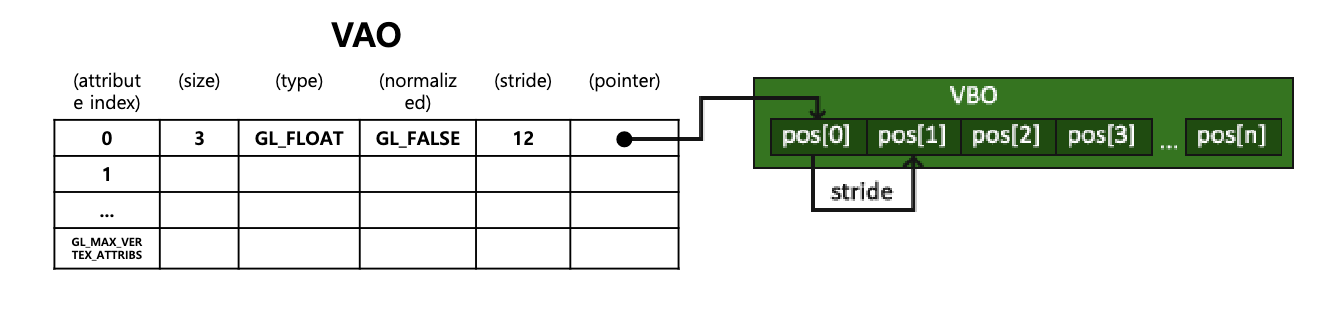

• Vertex Array Object (VAO)
  • OpenGL object that stores the “state” for working with vertex data.
• VAO stores :
  • Vertex attribute configuration via glVertexAttribPointer()
  • Pointers to VBOs (vertex buffer objects) associated with vertex attributes by glVertexAttribPointer()
  • Whether a vertex attribute is enabled or not by glEnableVertexAttribArray()

VAO = glGenVertexArrays(1) # create a vertex array object ID and store it to VAO variable

glBindVertexArray(VAO) # activate VAO

glGenVertexArrays(n) : generate n vertex array object IDs and return them

glBindVertexArray(VAO) : make vao vertex array object active

• “Bind” in OpenGL : basically means associating two things
  • glBind*() functions associate specified objects to current OpenGL context
  • make the specified object active or Activate the specified object

Preparation3 : Create and activate VBO

• Vertec Buffer Object (VBO)
  • A type of buffer that is used to store vertex data, such as vertex position, color, normal, and etc., for rendering
  • OpenGL은 VAO에 접근 불가, VBO를 통해야함
  • Rendering time이 빨라진다

VBO = glGenBuffers(1) # create a buffer object ID and store it to VBO variable

glBindBuffer(GL_ARRAY_BUFFER, VBO) # activate VBO as a vertex buffer object

glGenBuffers(n) : generate n buffer object IDs and return them

glBindBuffer(target, bufffer) : activate buffer object as target type buffer

Preparation4 : Copy vertex data to VBO

glBufferData(GL_ARRAY_BUFFER, vertices.nbytes, vertices.ptr, GL_STATIC_DRAW)

glBufferData(target, size, data, usage)

• target: Use GL_ARRAY_BUFFER for vertex buffer object
• size: Size of the data (in bytes) that will be copied
• data: A pointer to data that will be copied
• usage:
  • GL_STATIC_DRAW: the data will most likely not change at all or very rarely.
  • GL_DYNAMIC_DRAW: the data is likely to change a lot.
  • GL_STREAM_DRAW: the data will change every time it is drawn.

Preparation5 : Configure vertex attributes

• OpenGL은 아직 VBO를 어떻게 처리해야하는지 모름

→ 이걸 알려줘야함

glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3*glm.sizeof(glm.float32), None)

glEnableVertexAttribArray(0)

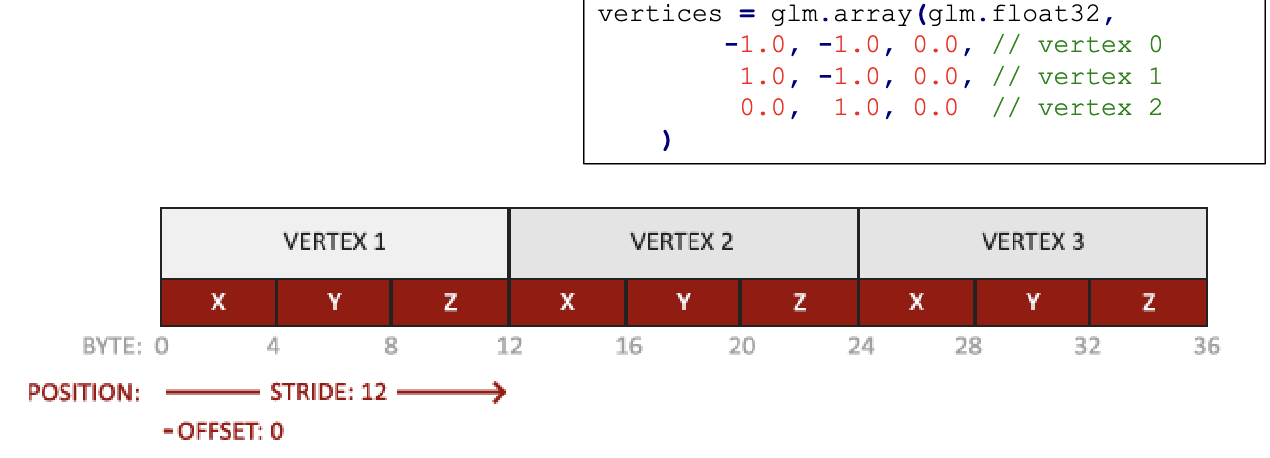

glVertexAttribPointer(index, size, type, normalized, stride, pointer)

• 이 함수로 어떻게 처리하는지 알려줌
• index: Vertex attribute index to configure
• size: Number of components per attribute (3 for vec3 data)
• type: Data type of each component
• normalized: Need to be normalized? Just set GL_FALSE for vertex positions.
• stride: Byte offset between consecutive vertex attributes
• pointer: Byte offset of the beginning component (‘None’ for 0)

glEnableVertexAttribArray(index) : Enable할 vertex를 알려줌

#version 330 core
layout (location = 0) in vec3 vin_pos;

void main()
{
		gl_Position = vec4(vin_pos.x, vin_pos.y, vin_pos.z, 1.0)
}

→ specifying vertex attribute index

Drawing 1 : Activate VAO

“Activate VAO associated with VBO containing vertex data to draw”

glBindVertexArray(VAO) # activate VAO

Drawing 2 : Call glDraw*()

glDrawArrays(GL_TRIANGLES, 0, 3)

glDrawArrays(mode, first, count)

• Render primitives from vertex array in currentlybounded VAO.
• mode: Primitive type to render.
• first: Starting index in the vertex array
• count: Number of vertices to be rendered

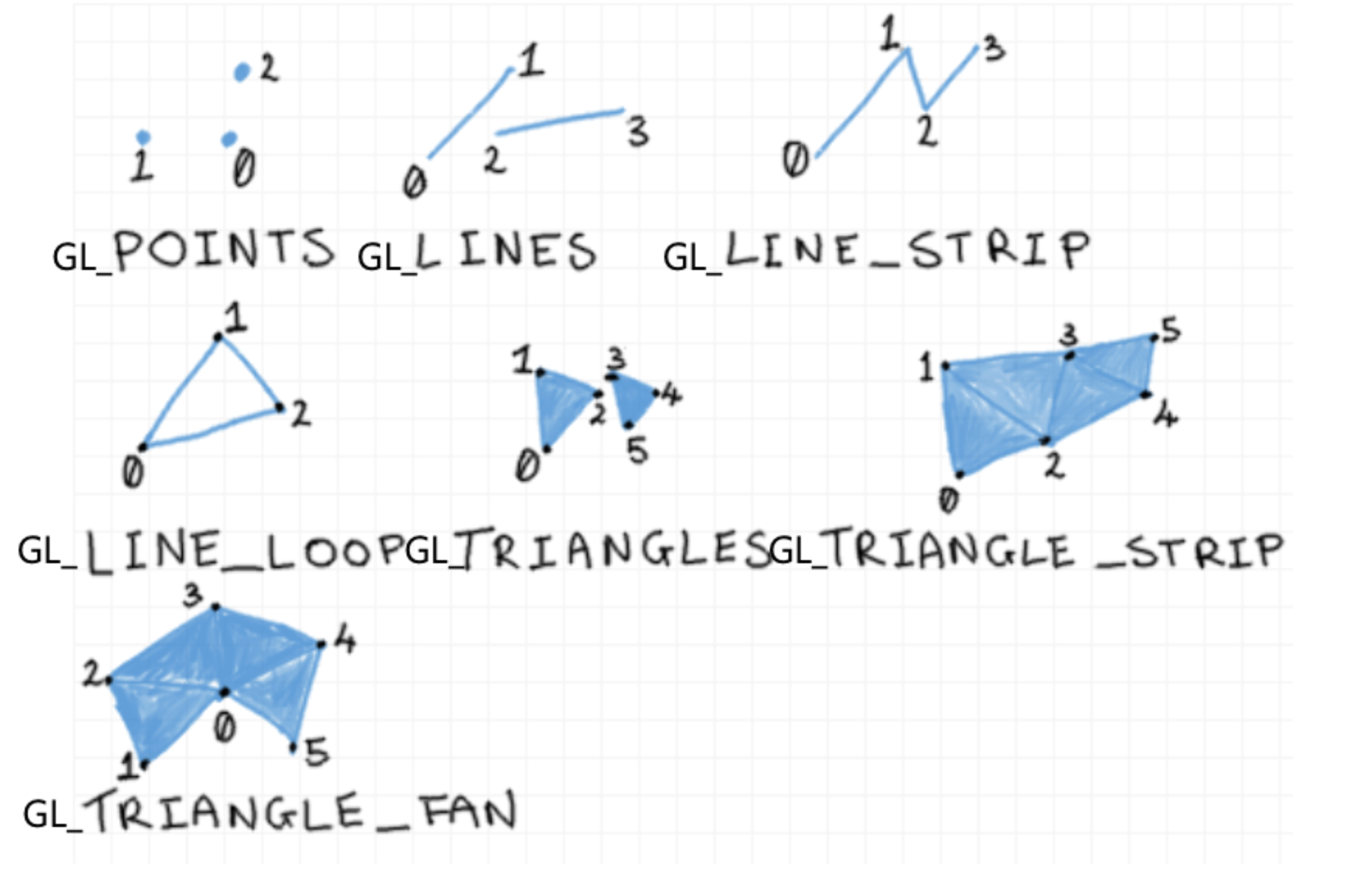

primitive Types
